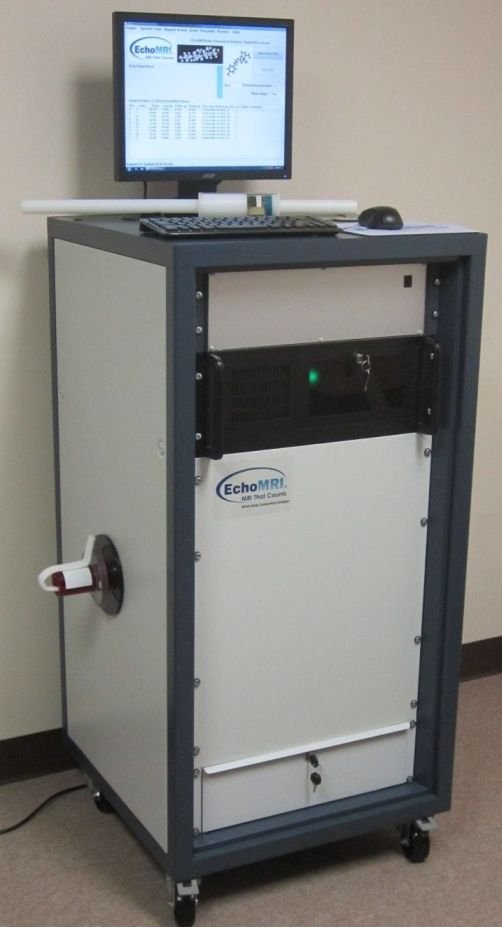

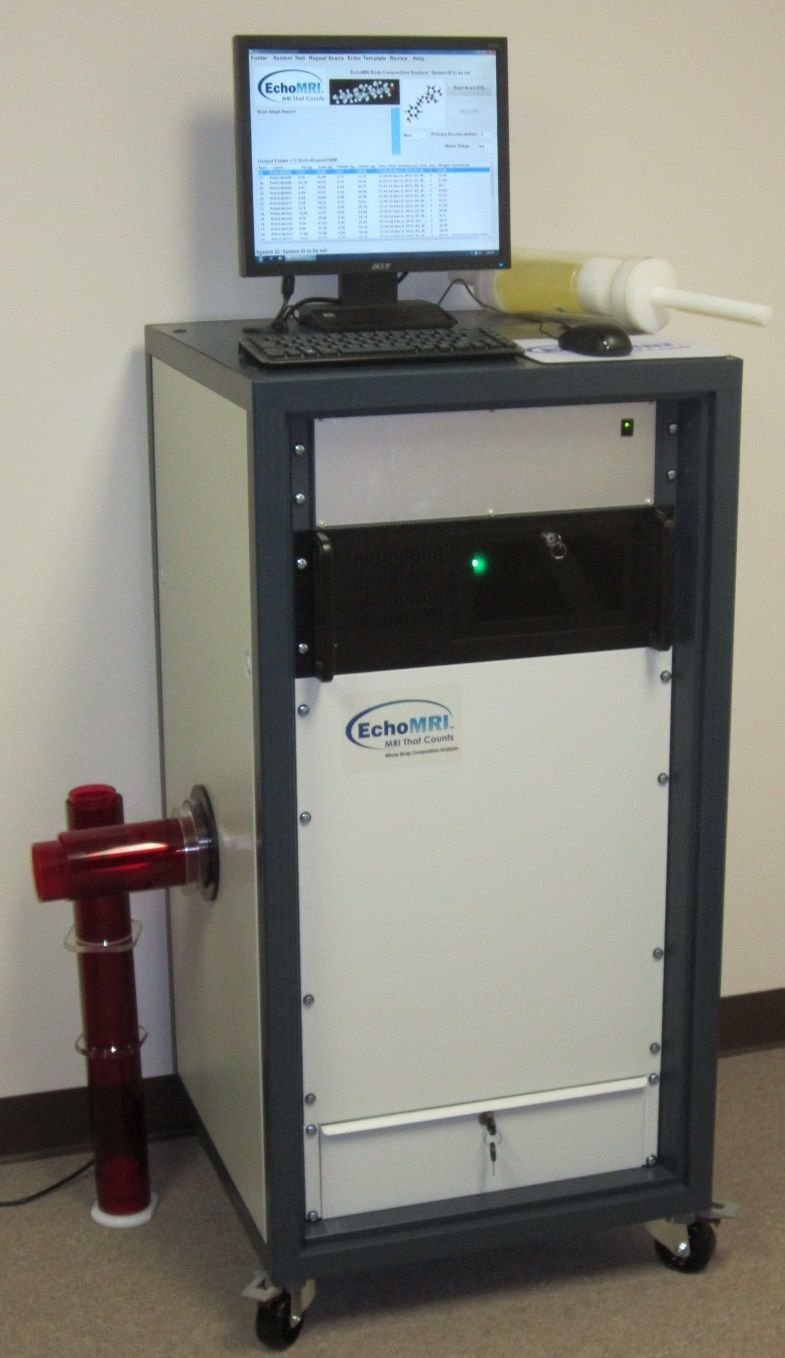

The EchoMRI™-500, 700, 900, and 1100 Analyzers deliver precise body composition measurements of fat, lean, free water, and total water masses in live animals weighing up to 500, 700, 900, and 1100 grams, respectively.

Scanning takes 0.5 – 3.2 minutes, depending on the precision settings.

If additional hardware inserts are purchased, composition of smaller animals up to 100g and of still smaller samples of animal organs or tissues weighing up to 7g can be measured with enhanced precision.

The live animals need no anesthesia and no special preparation before measurement.

EchoMRI™ Analyzers are exceedingly easy to operate. A training period of one hour is sufficient for individuals without prior knowledge.

Numeric results are stored and can be viewed again later at any time, as well as extracted either into Excel and ASCII files or into Access database.

The EchoMRI™-500, 700, 900 and 1100 Analyzers are stand-alone units, on 4 casters for easy relocation. They use standard power sources, and are completely shielded and safe to run.

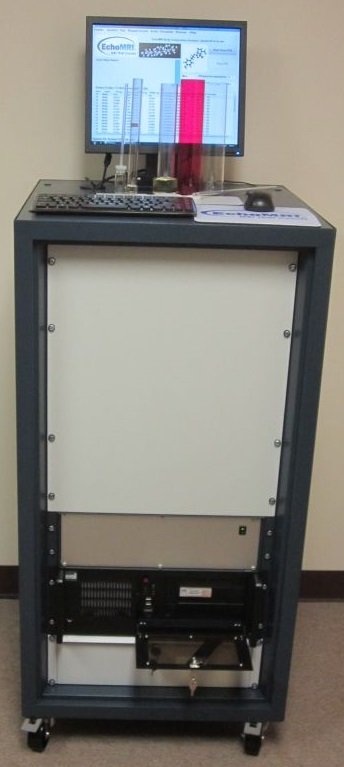

The EchoMRI™ 3-in-1, EchoMRI™ 2-in-1, and EchoMRI™-100V Analyzers deliver precise body composition measurements of fat, lean, free water, and total water masses in live animals weighing up to 100 grams.

Scanning takes 0.5 – 3.2 minutes, depending on the precision options.

A special benefit to researchers is that it has 3 vertical bores, one for live animals up to Mouse size (100 grams), one for organs or Tissue samples of up to 7 grams, and one for Biopsy samples of up to 0.3 grams.

The live animals need no anesthesia and no special preparation before measurement.

EchoMRI™ Analyzers are exceedingly easy to operate. A training period of one hour is sufficient for individuals without prior knowledge.

Numeric results are stored and can be viewed again later at any time, as well as extracted either into Excel and ASCII files or into Access database.

The EchoMRI™ 3-in-1, 2-in-1, and 100V Analyzers are stand-alone units, on 4 casters for easy relocation. They use standard power sources, and are completely shielded and safe to run.

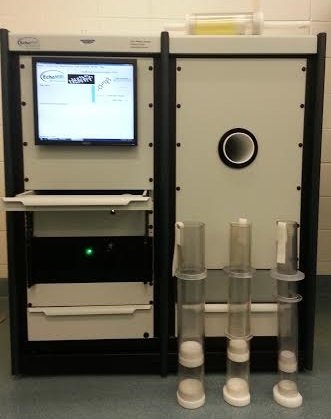

The EchoMRI™ 4-in-1 500, EchoMRI™ 4-in-1 700, EchoMRI™ 4-in-1 900, and EchoMRI™ 4-in1-1100 Analyzers deliver precise body composition measurements of fat, lean, free water, and total water masses.

A special benefit to researchers is that, in addition to the horizontal bore for live animals up to Rat size (500, 700, 900, or 1100 grams), it also has 3 vertical bores, one for live animals up to Mouse size (100 grams), one for organs or Tissue samples of up to 7 grams. and one for Biopsy samples of up to 0.3 grams.

Scanning takes 0.5 – 3.2 minutes, depending on the precision options.

The live animals need no anesthesia and no special preparation before measurement.

EchoMRI™ Analyzers are exceedingly easy to operate. A training period of one hour is sufficient for individuals without prior knowledge.

Numeric results are stored and can be viewed again later at any time, as well as extracted either into Excel and ASCII files or into Access database.

The EchoMRI™ 4-in-1-500, 700, 900, and 1100 Analyzers are stand-alone units, on 6 casters for easy relocation. They use standard power sources, and are completely shielded and safe to run.

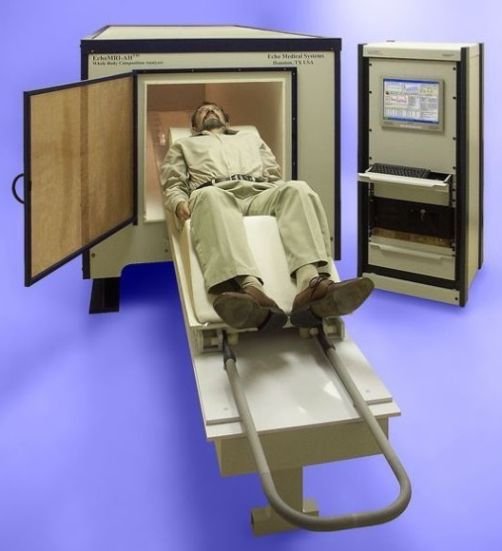

EchoMRI™ 250K, 80K, and 12k Body Composition Analyzers deliver precise body composition measurements of fat, lean, free water, and total water masses in humans or animals weighing up to 250 kg, 80kg, and 12 kg, respectively.

Several systems are operating in the field. Some were purchased by pharmaceutical companies and are being used as part of their clinical trial programs. Several studies have been completed, and others are underway.

Scanning takes 0.5 – 3.2 minutes, depending on the precision options.

No special preparation is needed before measurement.

EchoMRI™ Analyzers are exceedingly easy to operate. A training period of one hour is sufficient for individuals without prior knowledge.

Numeric results are stored and can be viewed again later at any time, as well as extracted either into Excel and ASCII files or into Access database.

An Analyzer is a stand-alone unit, uses standard power sources, and is completely shielded and safe to run.

EchoMRI carries whole body composition analyzers for most commonly used animal models in today’s research. However, sometimes research requires very specific, unique instruments not readily available on the market. Whether it is just a different sample size or a conveyer-based fast screening system, we will meet this challenge to create an instrument which will suit your needs perfectly.

Please let us know the sizes and weight ranges of your subjects, special needs and circumstances in which you would scan them, and how to contact you. Custom system examples below:

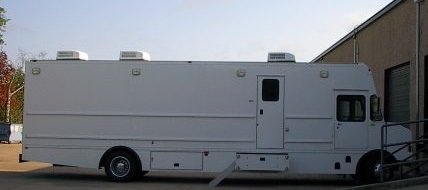

Mobile EchoMRI™ Laboratories for Body Composition Analysis

Some of our customers need traveling mobility, such as avian researchers who follow the migration of their subjects or researchers of dogs and other pets who need to use their Analyzer at multiple locations.

We offer various customized solutions which cater to mobility needs in the whole range of different scales available in our standard systems.

The two examples shown below are mobile labs for Small Animals – Birds and Bats and for Larger Animals – Dogs and Pets

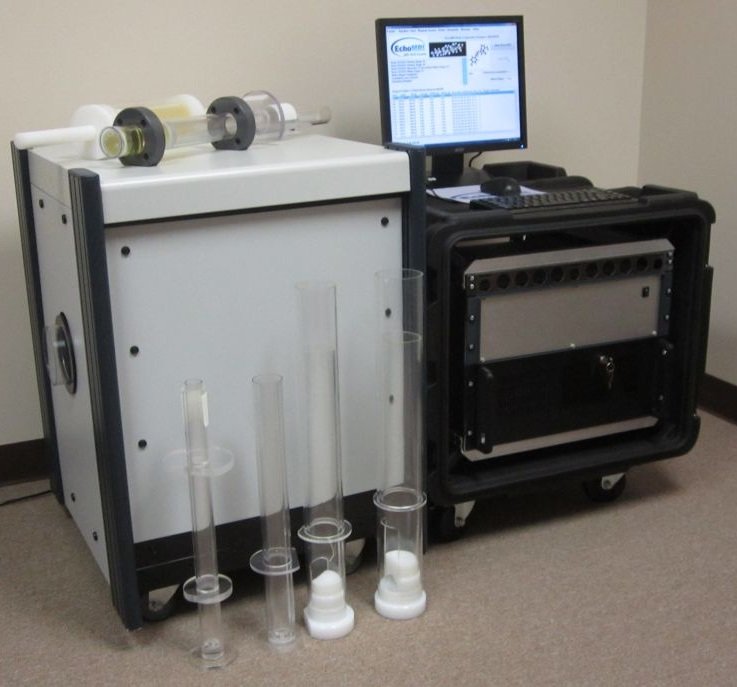

Small Animals Mobile Analyzers – Birds and Bats

A small animals system is split into two pieces, to fit inside a small mobile laboratory.The example shown in the picture is the EchoMRI™ Mobile Body Composition Analyzer for Birds and Bats, or other small animals of up to 200 grams. It is customized particularly for the BCA of birds in that it has a specially elongated field of view.
